Cisco SPA512G 1-Line IP Phone with 2-Port Gigabit Ethernet

Cisco SPA512G 1-Line IP Phone with 2-Port Gigabit Ethernet Switch, PoE, and LCD Display

Highlights

• Full-featured 1-line business-class IP phone supporting Power over Ethernet (PoE)
• Connects directly to an Internet telephone service provider or to an IP PBX
• Dual Gigabit Ethernet switched ports, speakerphone, caller ID, call hold, conferencing, and more
• Easy installation and secure remote provisioning, as well as menu-based and web-based configuration
• Supports up to two Cisco SPA500S Expansion Modules, adding up to 64 additional buttons
• Supports both SIP and SPCP Protocols with Cisco Unified Communication 500 Series
• Rich Phone Features and SIP Compatibility

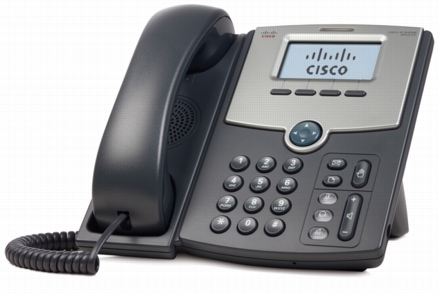

The Cisco® SPA512G 1-Line IP Phone with 2-Port Gigabit Ethernet Switch provides advanced voice and data communications features small businesses need to stay productive and responsive. Based on Session Initiation Protocol (SIP), the Cisco SPA512G (Figure 1) has been tested to ensure complete interoperability with leading voice over IP (VoIP) equipment from voice over IP infrastructure leaders, enabling service providers to quickly roll out competitive, feature-rich services to their customers.

With hundreds of features and configurable service parameters, the Cisco SPA512G addresses the requirements of traditional business users while building on the advantages of IP telephony. Features such as easy station moves and shared line appearances (across local and geographically dispersed locations) are just some of the many advantages of the SPA512G.

Stylish and affordable, the Cisco SPA512G IP Phone can also be used with productivity-enhancing features such as VoiceView Express, and Cisco XML Applications when interfacing with Cisco Unified Communication 500 Series in SPCP Mode.

Secure and Easy to Manage

The Cisco SPA512G was designed to simplify installation, while providing enhanced security for complete peace of mind. It utilizes standard encryption protocols to perform secure remote provisioning and unobtrusive in-service software upgrades. Secure remote provisioning tools include detailed performance measurement and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring customer premises equipment.

Telephony Features

• One voice line with two call appearances
• Backlit pixel-based display: 128 x 64 monochrome graphical liquid crystal display (LCD)
• Line status: active line indication, name and number
• Menu-driven user interface
• Shared line appearance*
• Speakerphone
• Call hold
• Music on hold*
• Call waiting
• Caller ID name and number
• Outbound caller ID blocking
• Call transfer: attended and blind
• Three-way call conferencing with local mixing
• Multiparty conferencing via external conference bridge
• Automatic redial of last calling and last called numbers
• On-hook dialing
• Call pickup: selective and group*
• Call park and unpark*
• Call swap
• Call back on busy
• Call blocking: anonymous and selective
• Call forwarding: unconditional, no answer, on busy
• Hot line and warm line automatic calling
• Call logs (100 entries each): made, answered, and missed calls
• Redial from call logs
• Personal directory with auto-dial (150 entries)
• Do not disturb (callers hear line busy tone)
• Digits dialed with number auto-completion
• Anonymous caller blocking
• Uniform Resource Identifier (URI) (IP) dialing support (vanity numbers)
• On-hook default audio configuration (speakerphone and headset)
• Multiple ring tones with selectable ring tone per line
• Called number with directory name matching
• Ability to call number using name: directory matching or via caller ID
• Subsequent incoming calls show calling name and number
• Date and time with support for intelligent daylight savings
• Call duration and start time stored in call logs
• Call timer
• Name and identity (text) displayed at startup
• Distinctive ringing based on calling and called number
• 12 user-customizable ring tones
• Speed dialing, eight entries
• Configurable dial/numbering plan support
• Intercom*
• Group paging
• NAT Traversal, including STUN support
• DNS SRV and multiple A records for proxy lookup and proxy redundancy
• Advanced Port Mirroring between PC Port and SW Port
• Debug, syslog, report generation, and event logging
• Secure call encrypted voice communication support
• Built-in web server for administration and configuration with multiple security levels
• Automated remote and secure provisioning via TFTP, HTTP or HTTPS
• Option to require administrator password to reset unit to factory defaults

* Feature requires support by call server.

Hardware Features

• Pixel-based display: 128 x 64 monochrome LCD graphical display with backlight
• Dedicated illuminated buttons for:
  • – Audio mute on/off
  • – Headset on/off
  • – Speakerphone on/off
• Four-way rocking directional knob for menu navigation
• Voicemail message waiting indicator light
• Voicemail message retrieval button
• Dedicated hold button
• Settings button for access to feature, setup, and configuration menus
• Volume control rocking up/down knob controls handset, headset, speaker, ringer
• Standard 12-button dialing pad
• High-quality handset and cradle
• Built-in high-quality microphone and speaker
• Headset jack: 2.5 mm
• Electronic Hook Switch (EHS) Support with selected Plantronics headsets with adapter
• Gigabit Switch Port and PC Port: 1000BASE-T RJ-45
• 802.3af compliant Power over Ethernet (PoE)
• Optional 5 VDC universal (100-240V) switching power supply is ordered separately
• Regulatory Compliance
• FCC (Part 15, Class B), CE Mark, A-Tick
• Security Features
• Password-protected system, preset to factory default
• Password-protected access to administrator and user-level features
• HTTPS with factory-installed client certificate
• HTTP digest: encrypted authentication via MD5 (RFC 1321)
• Up to 256-bit Advanced Encryption Standard (AES) encryption
• Documentation
• Quick-Start Installation and Configuration Guide
• User Guide
• Administration Guide
• Provisioning Guide (for service providers only)
• Package Contents
• Cisco SPA512G IP Phone, handset, and stand
• Handset cord
• RJ-45 Ethernet cable
• Quick Installation Guide

Specifications

Table 1 gives specifications for the Cisco SPA512G 1-Line IP Phone with 2-Port Gigabit Ethernet Switch.

Specifications for the Cisco SPA512G 1-Line IP Phone with 2-Port Gigabit Ethernet Switch

Note: Many features are programmable within a defined range or list of options. Please see the SPA Administration Guide for details. The target configuration profile is uploaded to the SPA512G at the time of provisioning.

Table 2 compares the SPA512G with other Cisco Small Business 500 Series IP Phones.

Cisco Small Business SPA500 Series IP Phone Comparison

Ordering Information

Table 4. Optional Accessories
